Seeburg Multitalents

Unsere Multitalente im Überblick

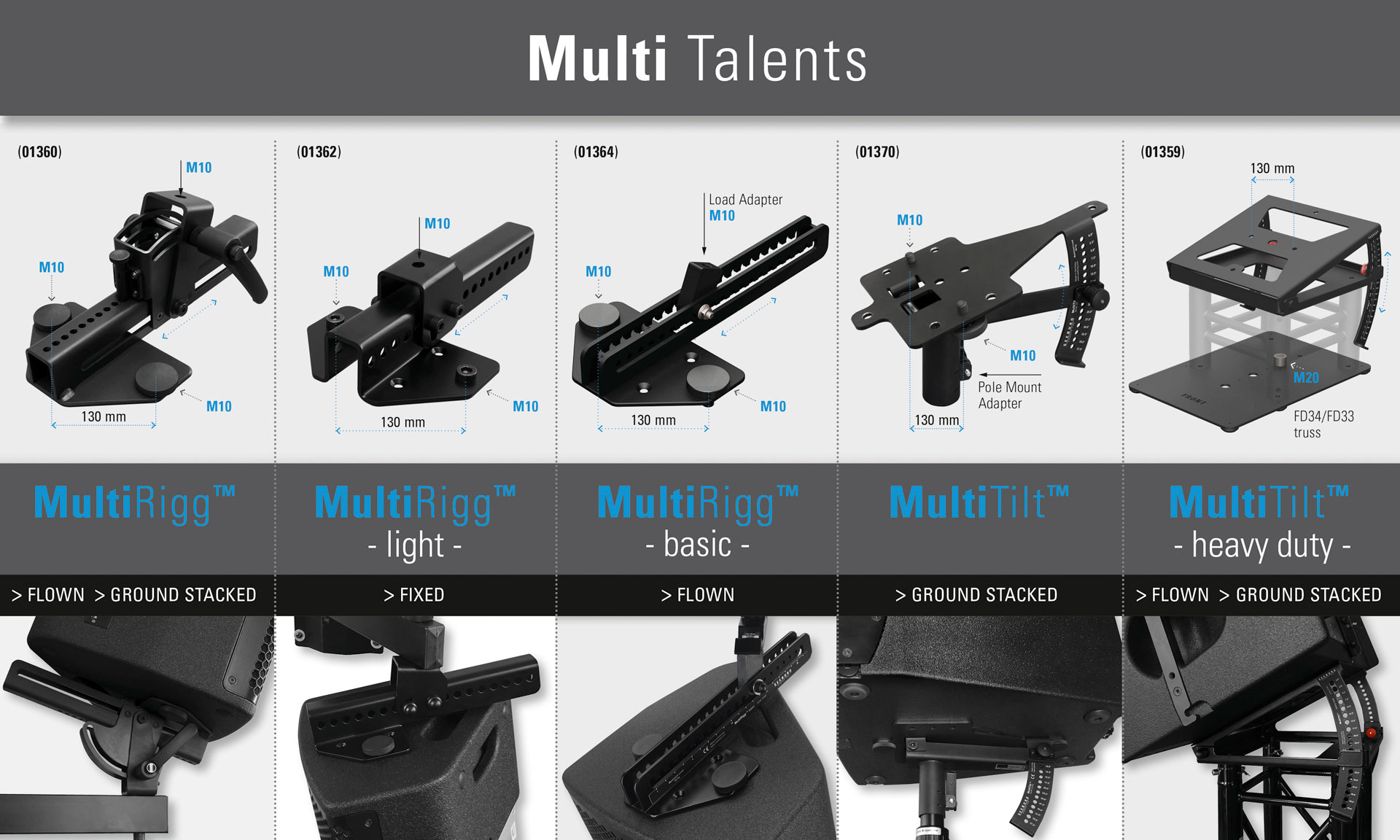

MultiRigg™
> flown / ground stacked applications
> fits to: 2 x M10 points (d=130 mm)
> incl. 2 x knurled screws M10 x 20 mm,
> 1 x handle screw, M8 x 55 mm
> max. load 50 kg

MultiRigg™- light -
> fixed installations
> fits to: 2 x M10 points (d=130 mm)
> incl. 2 x socket head screws, M10 x 20 mm
> max. load 50 kg

MultiRigg™- basic -
> flown applications
> fits to: 2 x M10 points (d=130 mm)
> incl. load adapter M10, 2 x knurled screws M10 x 20 mm
> max. load: 50 kg

MultiTilt™
> ground stacked applications
> fits to: 2 x M10 points (d=130 mm)
> adjustable tilt 0° to 37,5°, integr. pole mount adapter with clamping device
> incl. 2 x knurled screws M10 x 20 mm
> max. load 50 kg

MultiTilt™- heavy duty -
> flown / ground stacked applications (Galeo C / C-Series / K 24)
> to be used with: FD34/FD33 truss, min. truss length: 0,21 m
> consisting of base plate with M20 and tilt adjuster
> incl. socket head screw M20 x 30 mm
> max. load 150 kg
